The ADS2300A device can achieve high-efficiency interference drive away from targets with a radius of 0-5km. According to the target precise coordinates (Azimuth, Distance, Height) input by the detection device. The target discovery software can confirm the target, intervention target by manual and unattended operation mode.
Key Features
| Omnidirectional interference of 0-360 degrees.
| Can be used independently for 7x24 hours and high reliability.
| Reserving the detection device interface, which can be extended for linkage use.
| The multi-band omnidirectional beam jammer can perform complex interference suppression on the positioning signal, the picture transmission signal and the remote control signal as needed.
| The small, high-gain omnidirectional antenna is designed to ensure power signal output,realize low-power long-distance low-radiation transmission.
Standard Configurations
| No. | Item | Qty. |
| 1 | The host (including antenna and transmitter) | 1 pcs |
| 2 | Rotary table | 1 pcs |
| 3 | Power | 1 pcs |
Index Parameter
| Working Frequency | GPS\GLONASS\BDS, 2400MHz, 5800MHz, 433 MHz, 900MHz, 1200MHz,1400MHz (customized) |
| Effective Distance | 1 - 5km (customized) |
| Antenna | Omini-directional or Directional |
| Size | 531*476*270mm (without antenna) |
| Weight | 28kg |
| Working Condition | 220V AC, -35ºC to +65ºC |

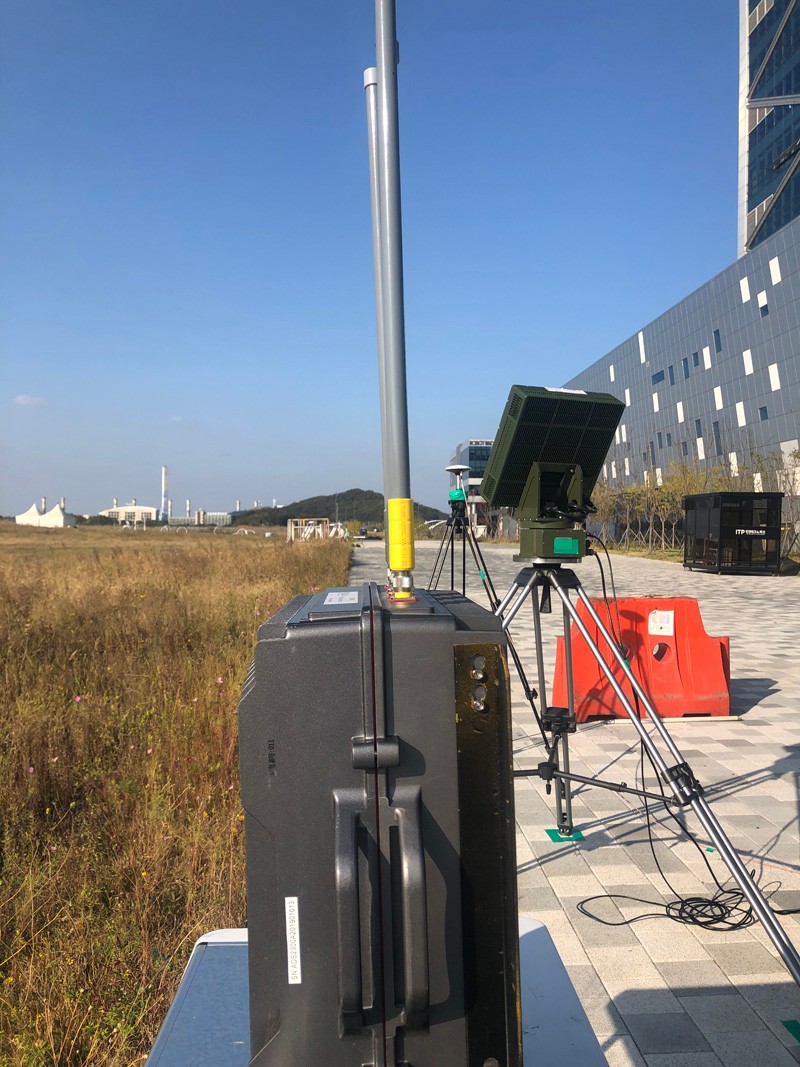

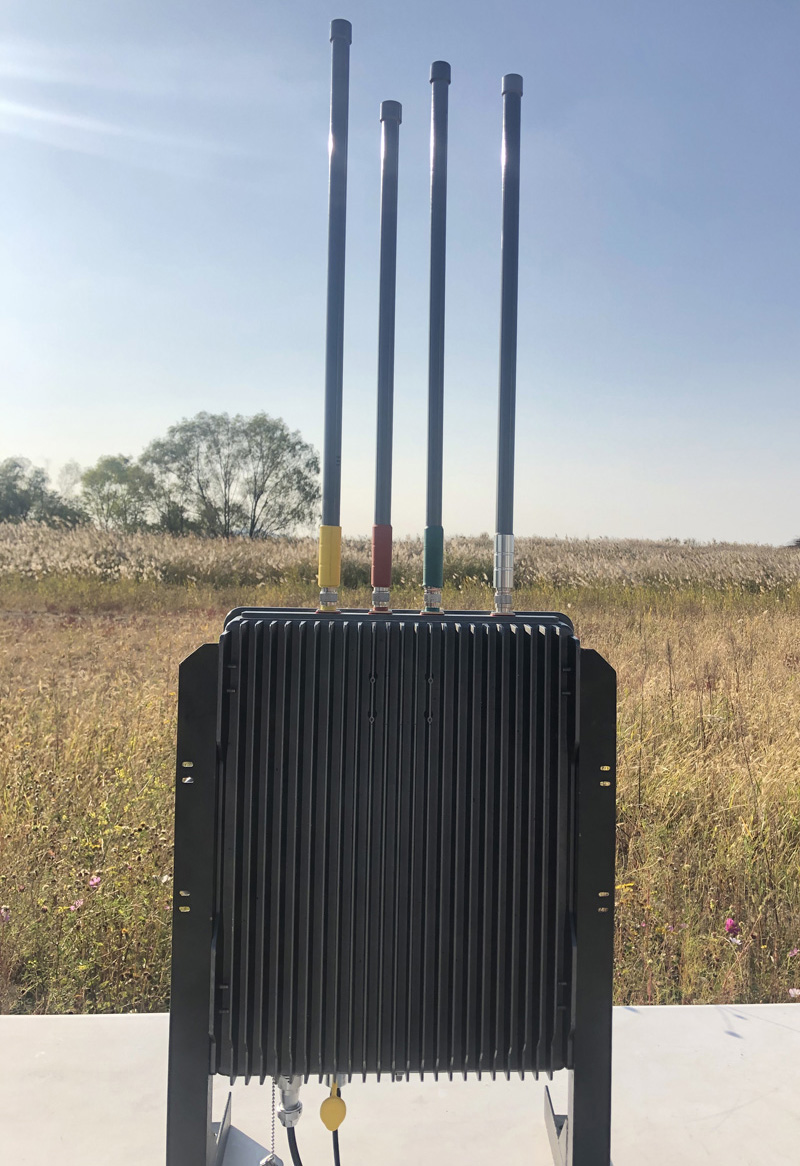

ADS2300A Picture
