ADS2100A Directional Navigation Guidance Defense Device
The ADS2100A device simulates real satellite navigation signals with high accuracy controls of the UAV navigation system and induces the fight control system to generate wrong flight control instructions. Besides, it can reset new trajectory of the UAV and guide the target to the predesigned position by the user.
Key Features
| Guiding the UAV to the any predesigned position by the user.
| Suitable for vehicle-mounted movement.
| Compact and easily integrated.
| Provide unaffected coordinate positioning and high precision timing data.
Download
Detailed
Standard Configurations
No. | Item | Qty. |
1 | Control host | 1 pcs |
2 | Control software | 1 pcs |
3 | Guide antenna | 1 pcs |
4 | Transmitting antenna | 1 pcs |
5 | Tripod | 1 pcs |
Index Parameter
Deception System | GPS/ GLONASS/ BDS optional |
Effective Time | 2s |
Fixed-point Induction | Error <=50m (continously guidance of radar) |
Fixed-point Control Mode | Automatic |
Effective Distance | >=5km (configurable, up to 30km) |
Coverage | Omnidirectional/ Directional |
Initialization Time | 15min |
Continuous Working Time | 7 * 24 hours |
Power Supply | 110 - 220 VAC |
Power Consumption | <= 30W |
Size | 440*440*45mm |
Weight | 5kg |

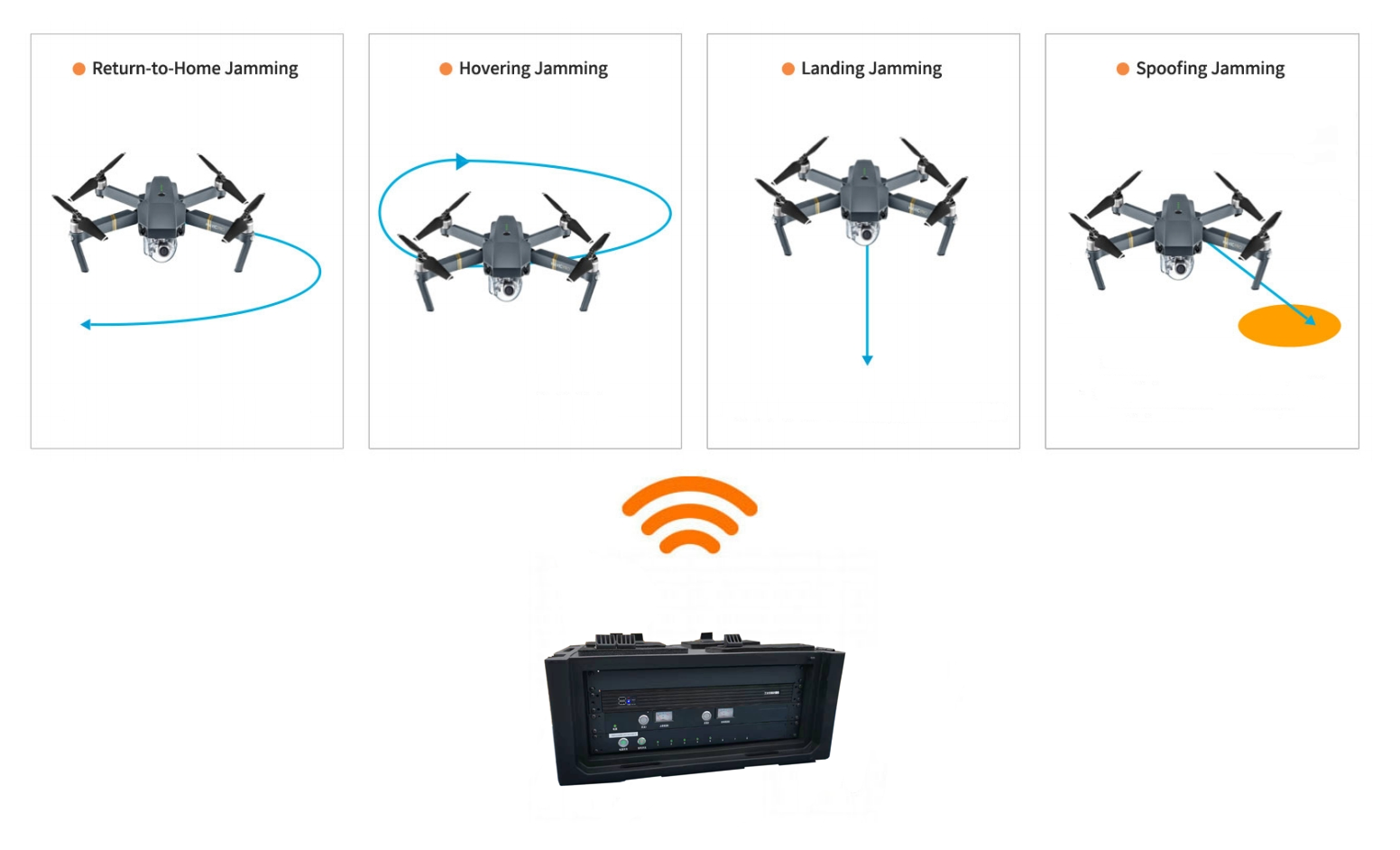

Schematic Diagram
