ADS2100B Directional Navigation Guidance Defense Device

The ADS2100B device simulates real satellite navigation signals with high accuracy controls of the UAV navigation system and induces the fight control system to generate wrong flight control instructions. Besides, it can reset new trajectory of the UAV and guide the target to the predesigned position by the user.


Key Features

|  Guiding the UAV to the any predesigned position by the user.

|  Suitable for stationary movement.

|  Compact and easily integrated.

|  Provide unaffected coordinate positioning and high precision timing data.



Detailed

Standard Configurations

No.ItemQty.
1

Control host

1 pcs
2
Control software1 pcs
3Guide antenna1 pcs
4Transmitting antenna1 pcs
5Tripod1 pcs


Index Parameter

Deception System

GPS/ GLONASS/ BDS optional

Effective Time2s
Fixed-point InductionError <=50m (continously guidance of radar)
Fixed-point Control ModeAutomatic
Effective Distance>=5km (configurable, up to 30km)
CoverageOmnidirectional/ Directional
Initialization Time15min
Continuous Working Time7 * 24 hours
Power Supply110 - 220 VAC
Power Consumption<= 30W
Size

Ф 350*350mm

Weight

10kg

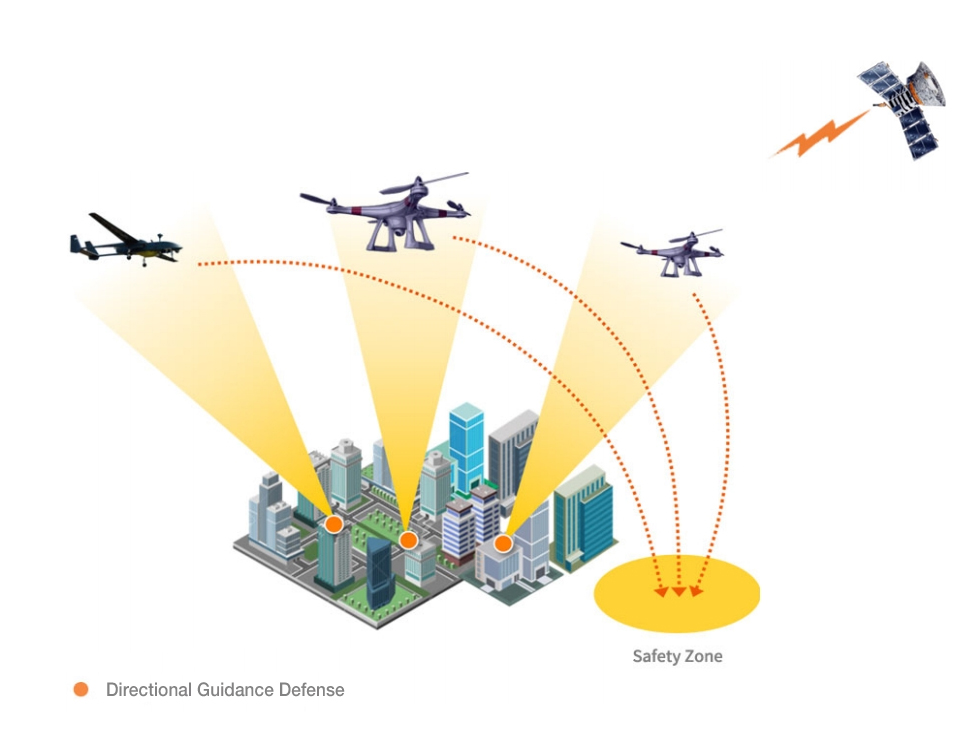

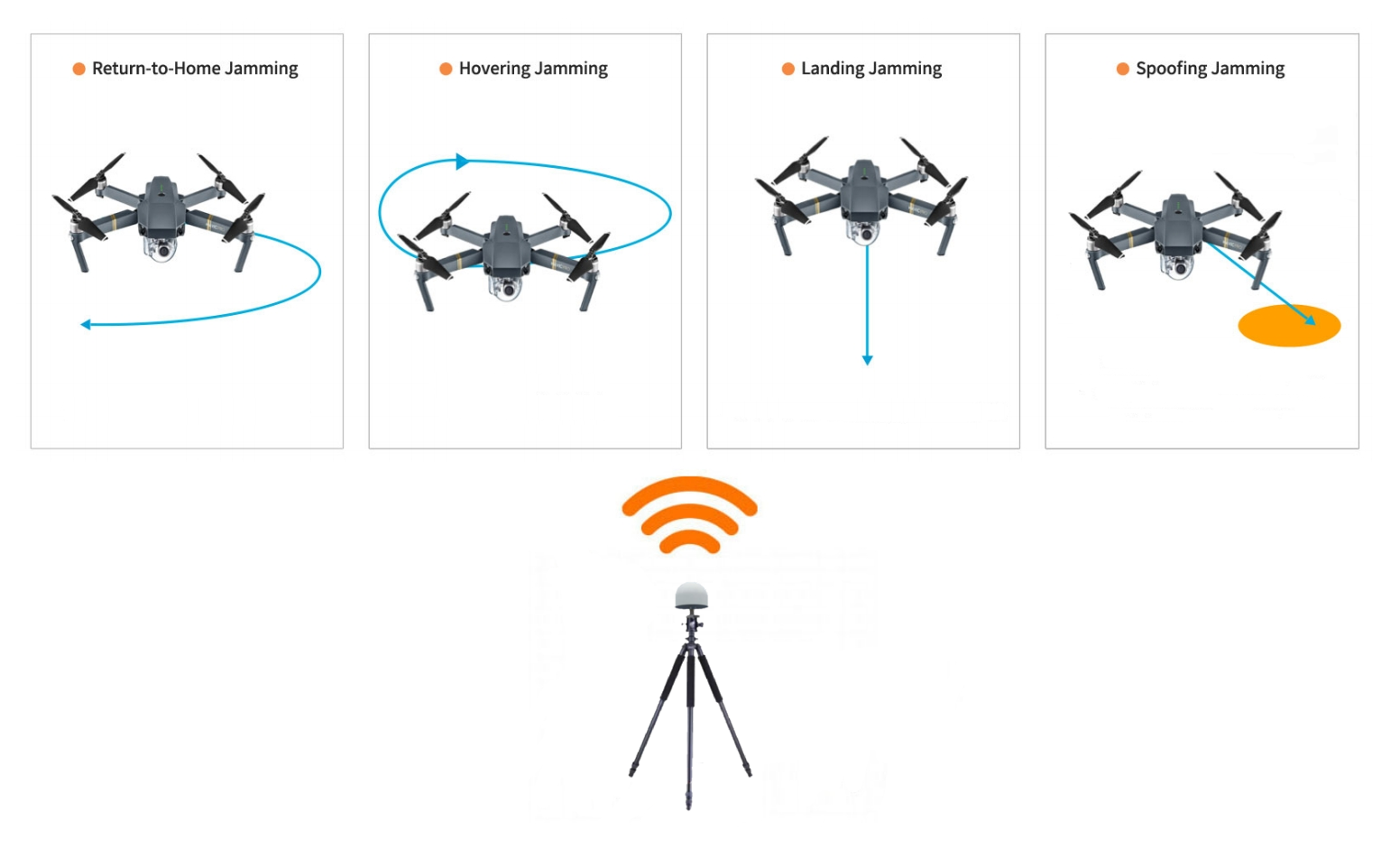

Schematic Diagram

spoofer

ADS2100B
